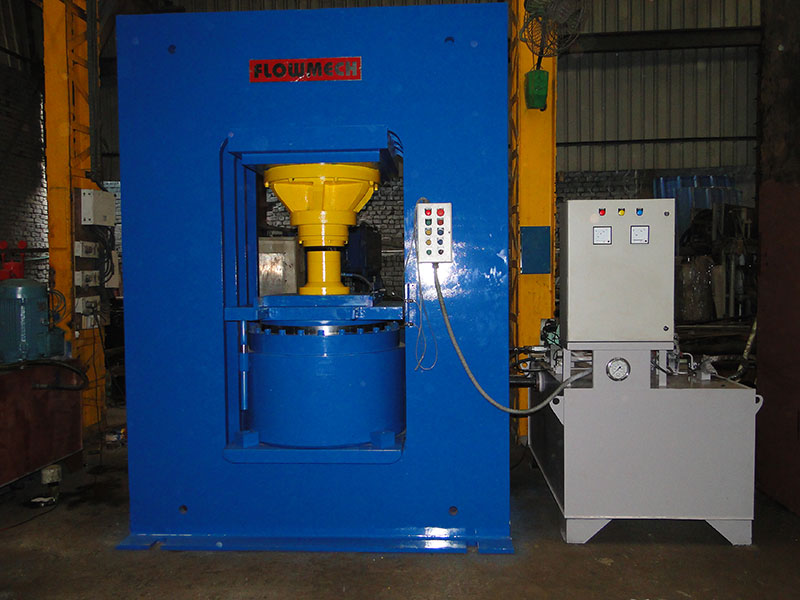

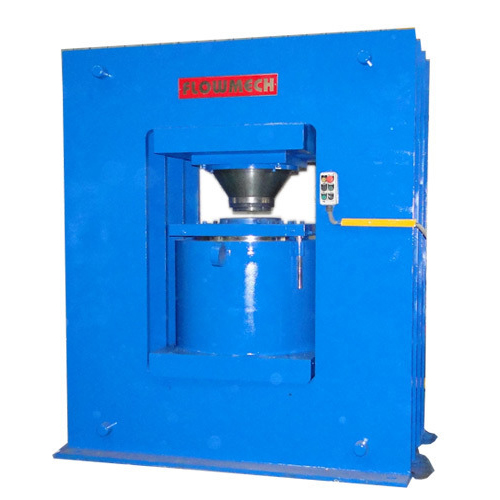

Hydraulic Press for Induction

The Hydraulic Press for Induction is manufactured at our end in conformation with advanced technological standards. These presses are used for molding hardware, mold copying and many more applications. The machine is used for pressing sliced stainless steel on to the induction cooker.

It comprises of fast supercharge cylinder, independent cooling system with main cylinder and can be safe and convenient to operated. The machine is operated on two modes, manual mode and semi auto control mode.

Working - Semi auto control mode: The machine while working on semi auto control mode can finish the full work circulation including fast up, pressing, auto-return and stop return. Equipped with cooling systems with having independent filters and electricity protection equipment, the machine is highly product efficient while working and consumes less energy.

DESCRIPTION CAPACITY	UNIT Ton	HYDRAULIC FSA-700 700	INDUCTION FSA-1000 1000	PRESS FSA-1500 1500	FSA-2000 2000	FSA-250 2500
MAX. STROKE OF BED	mm	200/50	150/50	250/50	250/50	200/50
MAX. OPEN HEIGHT	mm	500/200	360/100	560/200	600/200	480/100
BED AREA (LR X FB)	mm	820 x 820	860 x 860	920 x 920	1060 x 1060	1400 x 1400
BED UP SPEED	mm/s	80	110	80	80	80
MOTOR OUTPUT	Kw	15	22	37+3	37+3	45+3
OVERALL SIZE (L-R)	mm	1650	1660	1700	2190	2950
OVERALL SIZE (F-B)	mm	1585	1700	2050	2465	2375
OVERALL SIZE (H)	mm	2400	2365	2945	3410	3650
NOMINAL WORKING PRESSURE	Bar	250	250	390	400	400
