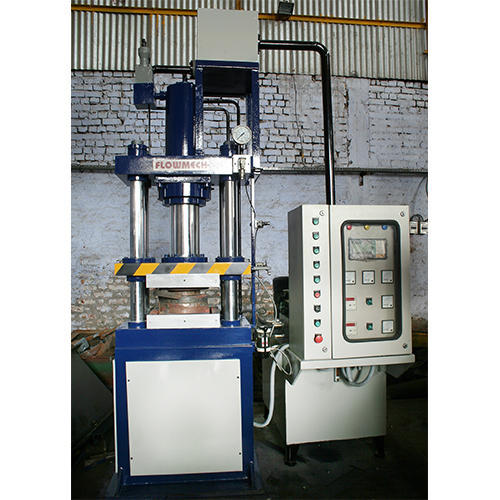

Hydraulic Lab Testing Machine

Flowmech hydraulic lab testing machines are designed to meet the customer's need for a compact and high efficiency material life tester. Hydraulic testing machines operate very easily meeting the requirement to be ultra quiet for test lab use. The unit delivers accurate results. Customer supplied electronic logic circuitry and motor starter were incorporated into the assembly.

Hydraulic Lab Testing Machine

MODEL NO.	CAP. TON	PLATEN SIZE (MM)	DAY LIGHT GAP (MM)	STROKE (MM)	BORE/ RAM DIA (MM)	PRESSURE KG/CM²	MOTOR H.P
FLTM 10	10	200 X 200	250	250	90	160	2	Send Enquiry
FLTM 25	25	250 X 250	300	300	140	170	3	Send Enquiry
FLTM 50	50	300 X 300	350	350	180	210	5	Send Enquiry
FLTM 75	75	400 X 350	400	400	220	210	7.5	Send Enquiry
FLTM 100	100	450 X 400	450	450	250	210	10	Send Enquiry
